200kw Syngas/Natural Gas/Landfill Gas/Oil Field Gas Generator Sets/Generating Sets/Genset

Pipeline natural gas and oil associated gas in municipal, oil field, gas field, and other places etc., can be used as fuel (after treatment) for power generation, and according to need, be equipped with supporting units for cold, heat and electricity cogeneration, it is energy conservation and has better economic returns.
Zichai brand natural gas generator using natural gas driven generator work, gas generator set waste heat can be used for heating, bathing. Natural generator set is optimized designed, has good stability and strong adaptability, can be applied on CCHP system, Petrochemical & chemical industry, metal and herbs, Papermaking, Pharmacy, and Food industry, Airport, railway station, Hospital, Business center, Arcade building. Production cost is lower than conventional energy, has good market prospect.

Gas Quality Suggested
  • Gas temperature≤40ºC
  • Gas pressure 2.5~10kPa
  • Methane content≥50%
  • Pressure change rate≤1kPa/min
  • Moisture content≤40g/Nm3,no free water
  • Sulfur ≤200mg/Nm3
  • NH3 ≤20mg/Nm3
  • Impurity content≤30mg/Nm3
  • Impurity size≤5μm
Gas Generator Specification
GENSET
Genset TypeOpen Type / Silent Type / Containerized Type / Trailer Type / CHP Unit etc
Rated Power8KW - 1500KW
Rated Voltage400 / 230V
Output TypeAC Three Phase
Speed1500 / 1800rpm
Frequency50 / 60HZ
Fuel Consumption≤0.3m3/KW.h
Noise Level65 - 100 (db)
Gas FuelsBiogas, natural gas, LPG, coal mine gas, oil associated gas, landfill etc
Optional DevicesCHP device, soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc

 ItemTechnical specification
EngineModel6300D/Z6300D/Z-18300D/Z-18300D/Z-2 8300ZLD/Z-19300ZLD/Z9300ZLD/Z-1
TypeInline, water cooled, four stroke, spark plug ignition
Non-turbochargedTurbocharged, inter-cooled
Cylinder number689
Cylinder diameter (mm)300
Rated speed(r/min)500600500600600600600
Rated power (kW)450550660770110013201650
Rated thermal consumption(MJ/kW·h)≤10.5
Rotate direction (From flywheel)Clockwise
Start modeCompressed air /motor startCompressed air start
Exhaust temperature (ºC)≤600≤650
Oil consumption(g/kW·h)≤0.8≤1.0
Generator setType400GFZ500GFZ600GFZ700GFZ1000GFZ1200GFZ1500GFZ
Rated power(kW)400500600700100012001500
Frequency(HZ)50
Voltage(V)400/6300/10500
Current(A)722/46/28902/57/341083/69/411263/80/481804/115/692165/137/822710/172/103
Power factor (COSΦ)0.8 (Lagging)
Phase and connecting3phases 4wires/3phases 3wires
Dimension (L×W×H)(mm)5800×1600×29006400×1600×29006400×1600×31008500×1900×37008500×1900×3700
Weight(kg)1800022000250004200042000

200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets
Gas Generator Technical Features
ØLarge cylinder, ensure stable and constant power output
Large cylinder, long stroke, low speed and big power reserves, ensure stable and constant power output.
ØLow speed ensure service life
Low &medium speed reduces components wear, extends service life, reduces components inventory and improve economic benefit.
ØNaturally aspirated
Naturally aspirated, low gas intake pressure requirement (gas pressure ≥2kPa), strong adaptability to gas pressure fluctuation.
ØTargeted designed & High adaptability
For biogas containing H2S, main components are under special treatment, enhance corrosion resistance; for high CO2content in biogas, air-fuel ratio and ignition system are optimized, enhance unit adaptability.


200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets
Why Zichai Gas Generator Set?
1. Development and manufacturing internal combustion engine since 1970
2. Factory area over 330000m2 & over 2200 employees
3. Highly versatile power generator with ability to handle more than 20 different gases
4. More than 200 employees dedicated to developing and improving power generator for various gas.
5. More than 1000 systems installed in over 20 countries using a variety of gases.
6. More than 50 people in the Customer Service Department making the Organization very Customer Responsive.

200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets

200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets

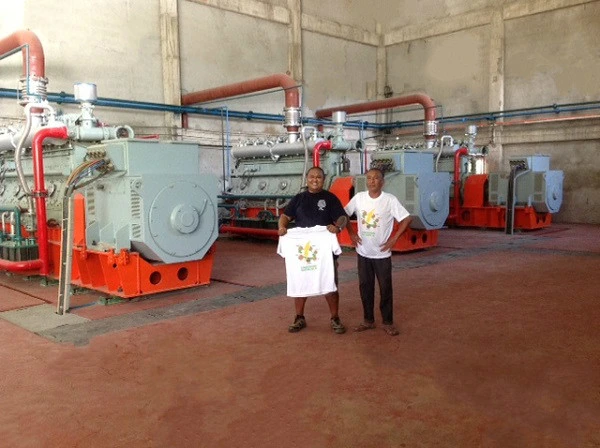

Project References
200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets

200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets
200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets






200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets
200kw Syngas Natural Gas Landfill Gas Oil Field Gas Generator Sets
FAQ
1.Are you a trading company or manufacture?
Manufacture with factory.
2.What kinds of gas generator set do you produce?
It covers for all kinds of gas produced in agriculture and industry, including biomass gas, biogas, natural gas, coal mine gas, coke oven gas, semi-coke gas and syngas, as well as related gas produce equipment.
3.What is your delivery time?
Normally within 60days, it depends on the configuration and quantity, please confirm with us before order.
4.What is your payment terms?
T/T or L/C.
5.How do you pack products?
Standard export packaging. Equipment packing with plastic bag, and with new solid wooden box, suitable for long-distance sea transportation, moisture-proof, earthquake, rust-proof and anti-brutal handling.
6.What is your available port of shipment?
Normally Qingdao port, other ports available according to customers' requirement
