30kv ring main unit gas insulated ring main unit Rmu

OverviewSF6-insulated ring main unit and SF6-insulated compact switchgear are used in medium voltage distribution networks. They offer a sealed stainless steel tank which contains all the live components and switching functions. The transformer is protected either by a switch fuse combination or a vacuum circuit breaker.SF6-insu

Featured Products

Overview

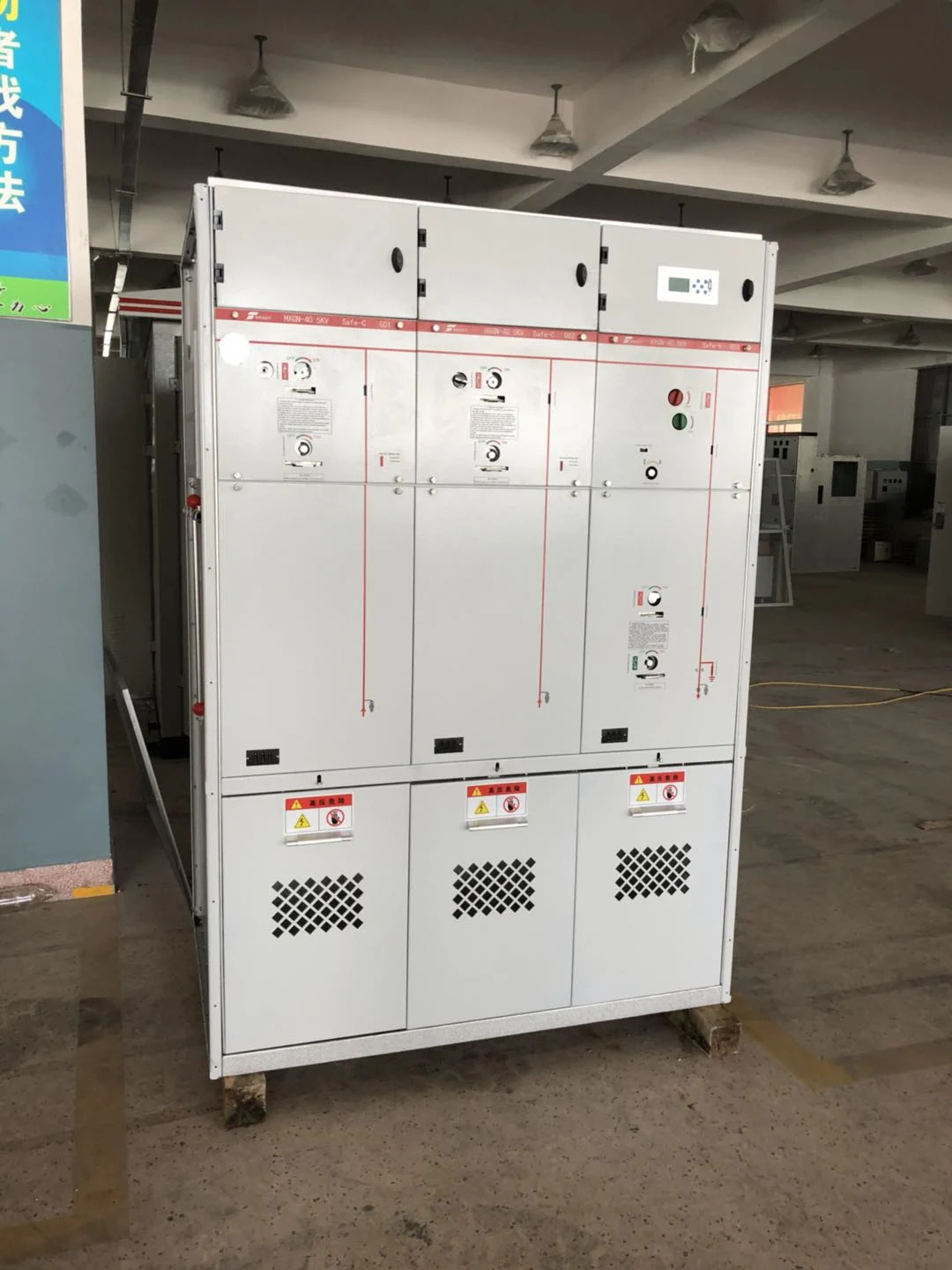

SF6-insulated ring main unit and SF6-insulated compact switchgear are used in medium voltage distribution networks. They offer a sealed stainless steel tank which contains all the live components and switching functions. The transformer is protected either by a switch fuse combination or a vacuum circuit breaker.

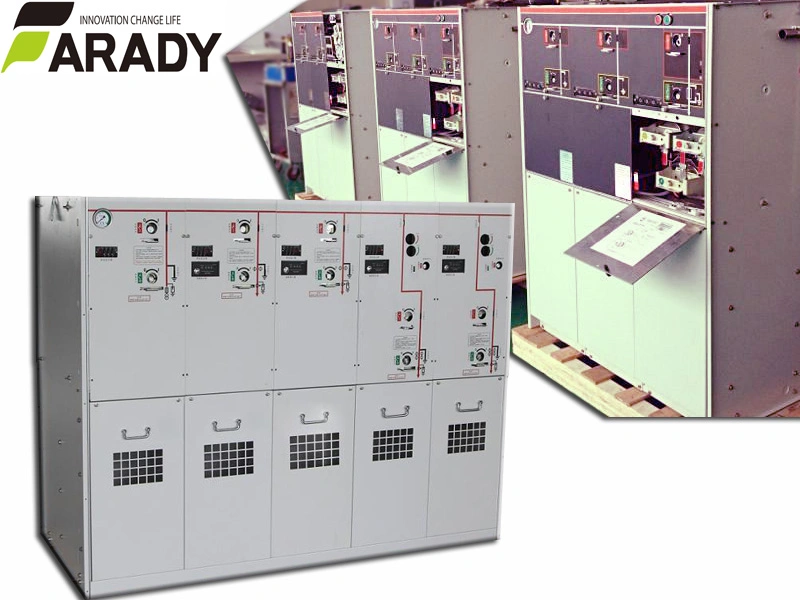

SF6-insulated ring main unit can be supplied as a 2, 3 or 4-way unit in standard configurations with additional equipment according to customer specification.

SF6-insulated compact switchgear has a unique flexibility due to its extendibility and the possible combination of fully modular and semi-modular configurations, with a maximum of 5 modules in one SF6-tank.

The units are delivered from the factory ready for installation. Routine tests are carried out on all units/ modules before dispatch. No special tools are required for installing the equipment.30kv Ring Main Unit Gas Insulated Ring Main Unit Rmu

30kv Ring Main Unit Gas Insulated Ring Main Unit Rmu


Technical Parameters

Gas Insulated Switchgear

C-module

F-module

V-module

Switch

disconnector

Earthing switch

Switch-fuse

combination

Earthing switch

Vacuum

circuit-breaker

Earthing switch

Rated voltage

kV

12/17,5/24

12/17,5/24

12/17,5/24

12/17,5/24

12/17,5/24

12/17,5/24

Power frequency withstand voltage

kV

28/38/50

28/38/50

28/38/50

28/38/50

28/38/50

28/38/50

Impulse withstand voltage

kV

95/95/125

95/95/125

95/95/125

95/95/125

95/95/125

95/95/125

Rated current

A

630/630/630



2001)



200/200/200



Breaking capacities:















--active load

A

630/630/630











--closed loop

A

670/670/670











--off load cable charging

A

141/141/141











--off load transformer

A





20/20/20







--earth fault

A

205/160/160











--earth fault cable charging

A

117/91/91











--short-circuit breaking current

kA





see 2)



16/16/16



Making capacity

kA

52,5/40/40

52,5/40/40

see 2)

12,5/12,5/12,5

40/40/40

40/40/40

Short time current 0,5 sec 3)

kA









16/16/16



Short time current 1 sec 4)

kA







5/5/5

16/16/16



Short time current 3 sec 5)

kA

21/16/16

21/16/16







16/16/16

Note: 1) Depending on the current rating of the fuse-link

2) Limited by high voltage fuse-links

3) Maximum rating for bushings Interface A (200 series plug-in)

4) Maximum rating for bushings Interface B (400 series plug-in)

5) Maximum rating for bushings Interface C (400 series bolted)

Packaging & Shipping
