Gnss Receiver G-mouse Receiver GPS Receiver with USB Connector
The Delin Comm RU4538-G-U3 module series is a family of stand alone GNSS receivers featuring
the high performance M8 positioning engine.These flexible and cost effective receivers offer numerous
connectivity options in aminiature 45x38x13 mm package.Their compact architecture and power and
memory options make RU4538-G-U3 modules ideal for battery operated mobile devices with very
strict cost and space constraints.
Features
Key Features
Factory
The Delin Comm RU4538-G-U3 module series is a family of stand alone GNSS receivers featuring
the high performance M8 positioning engine.These flexible and cost effective receivers offer numerous
connectivity options in aminiature 45x38x13 mm package.Their compact architecture and power and
memory options make RU4538-G-U3 modules ideal for battery operated mobile devices with very
strict cost and space constraints.
Features
Build on high performance, low-power M8030-KT chip set
Ultra high sensitivity: -167dBm
Extremely fast TTFF at low signal level
Built in Infineon BGA524N6 high gain LNA
Low power consumption:Max45mA@3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 3.3V--5.5V
Operating temperature range:-40 to 85ºC
Patch Antenna Size: 25x25x4mm
Small form factor: 45x38x13mm
Communication type: UART/TTL
Baud rate:9600bps, Update Rate:1HZ
Wire interface type: USB (type A) male head , L=300cm
RoHS compliant (Lead-free)

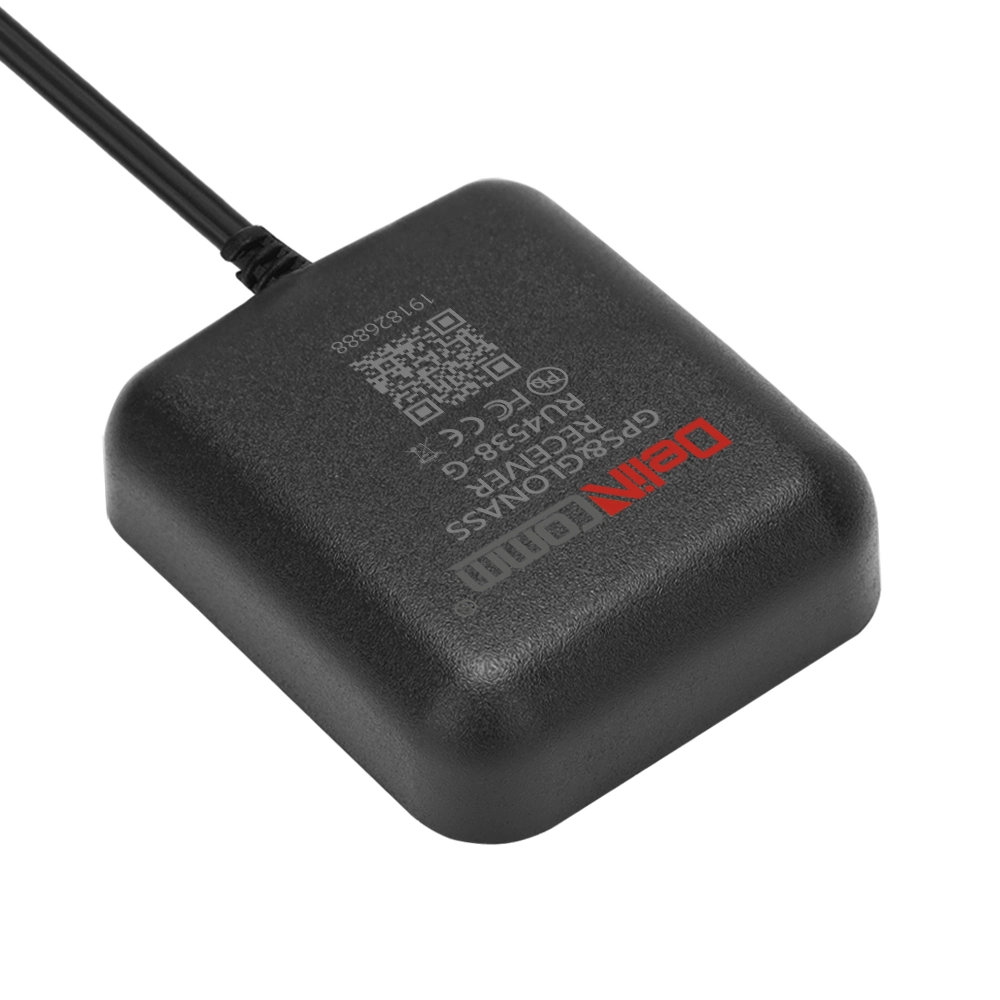

Product Picture
Product Picture
Key Features
| Parameter | Specification |
| Power Supply | Supply voltage: 3.3V~5.5V Typical: 3.3V |
| Power Consumption | Acquisition: 45mA @VCC=VBAT=5.0V |
| Tracking: 40mA @VCC=VBAT=5.0V | |
| Receiver Type | Code 72 search channels ,22 synchronous tracking channels |
| GPS&QZSS L1 1575.42MHz C/A , Beidou B1 1561.098MHz, GALILEO E1B/C1, GLONASS L1OF 1602MHz, | |
| SBAS: WAAS, EGNOS, MSAS, GAGAN | |
| Sensitivity | Tracking: -167dBm |
| Re-acquisition: -156dBm | |
| Acquisition: -146dBm | |
| TTFF (Autonomous) | Cold start: 35s type @-130dBm |
| Warm start: 30s type @-130dBm | |
| Hot start : 1s type @-130dBm | |
| Horizontal Position Accuracy (Autonomous) | <2.5m CEP @-130 dBm |
| Max Update Rate | Up to 10Hz, 1Hz by fault |
| Accuracy of 1PPS Signal | not enabled |
| Acceleration Accuracy | Without aid: 0.1m/s² |
| Dynamic Performance | Maximum altitude: 18,000m |
| Maximum velocity: 515m/s | |
| Acceleration: 4G | |
| UART Port | UART Port: TXD and RXD |
| Supports baud rate from 4800bps to 115200bps, 9600bps by default | |
| UART port for NMEA and UBX output, binary or u solution proper Agreement input | |
| Temperature Range | Normal operation: -40°C ~ +85°C |
| Storage temperature: -45°C ~ +125°C | |
| Physical Characteristics | Size: 45±0.20 × 38±0.20 ×13±0.50mm |
| Connecting line specifications: USB (type A) male head ,L=300cm | |
| Weight: Approx.35g |
